Honda Jazz GD3 to Haltech Elite 1500 Adaptor
AU$660.00
Pre-order
Price incl.
GST (10%)
AU$60.00
Harness Type
Out of stock, available for pre-order
Product Details

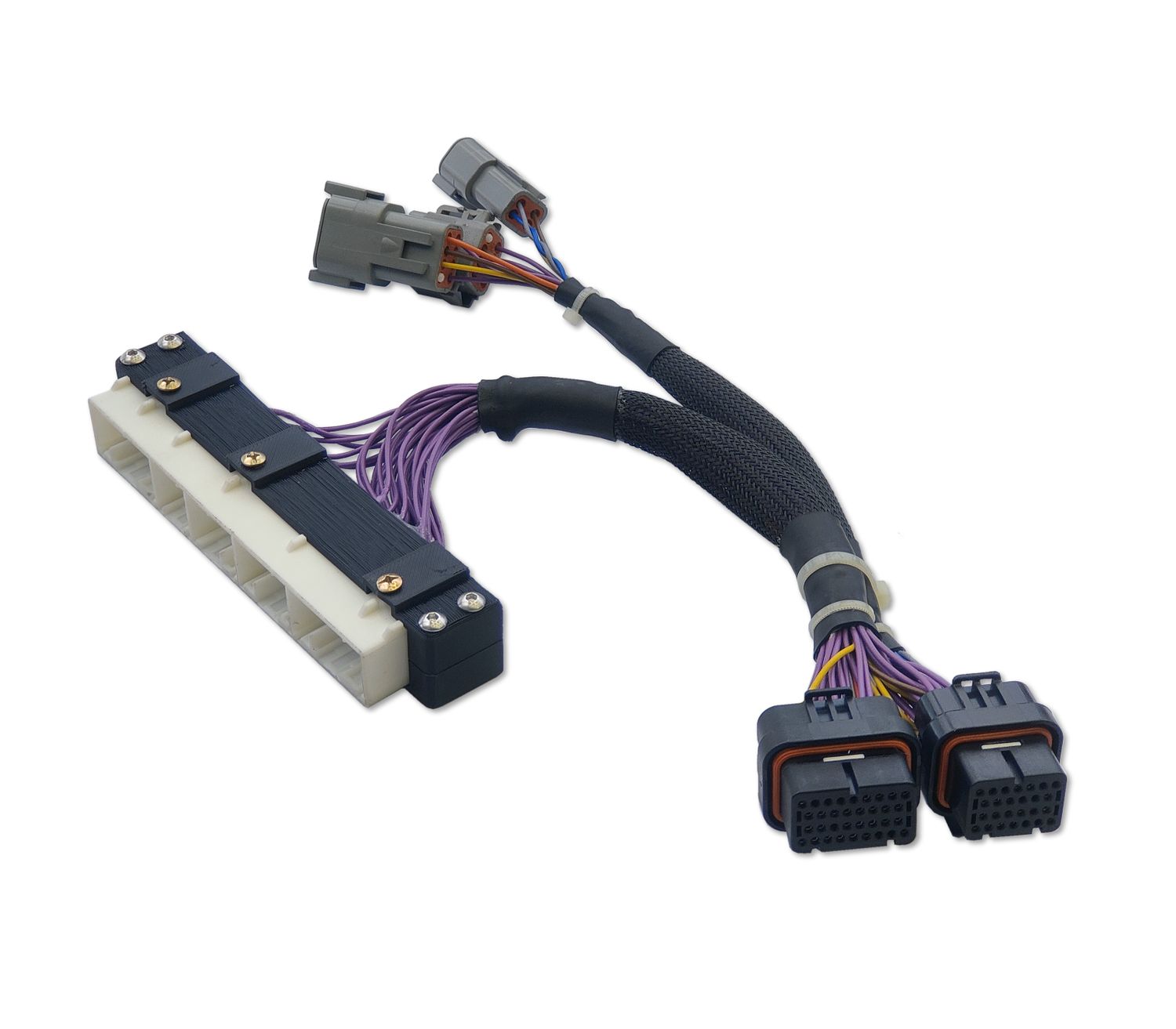

Honda Jazz GD3 to Haltech Elite 1500 Adaptor
This adaptor allows a Haltech Elite 1000 or Elite 1500 ECU to plug directly into the factory Honda Loom, allowing full control over the factory L15 engine.
Supported Models
- AUDM MY02-08 Honda Jazz GD3 L15A1 (Manual transmission only)
Product Features
- Plug & Play Connection to OEM Harness
- Retains control of factory features including; Air Conditioning, EVAP, Alternator Control, OE Temperature sensors, Idle Control, VTEC, Thermo Fan, Knock Sensor, Fuel pump, Tacho, Vehicle Speed, Check Engine Light etc.
- Instruction Sheet supplied with I/O Configuration and Calibration notes for easy setup.
Optional 'Premium' Features
- 2x Auxiliary DTM8 Connectors for additional I/O, perfect for running Oil Pressure / Temperature sensors.
- 1x Auxiliary CAN Connector
Notes:
Harness design my vary slightly as they are hand made to order. Please allow 2-3 weeks for production.
The factory Dash cluster temperature light is multiplexed and it will no longer work. As there is no longer a connection, some vehicles may constantly display the green ‘cold’ light (which can be removed from the dashboard) or no light at all.
ECU in product photos for illustration purposes only.
